Overview

The quality engineered ADALIA EXTREME X3M™ retractable awning is our most popular awning and is designed to combine durability with excellent functionality. Most parts are made from extruded, thermally treated, and artificially aged aluminum. All parts are immune to corrosion, and are finished with a white, ivory or black powder coating. Custom colour matching on the frame is available. The slope is adjustable with a hex key and wrench from 0° to 75°. The ADALIA X3M™ is backed by a 10 year warranty.

The awnings are made to each client's specification with custom widths starting from 6'2" wide (in 1" increments). Available projections: 5'4", 6'9", 8'8", 10'0" and 11'8".

Frame Components

  • Minimum Width in Relation to Projection   Minimum Width in Relation to Projection

    This chart indicates minimum width required to achieve certain projections with ADALIA X3M™ awning. In the event where the actual wall width is smaller than minimum requirements but you still require a longer projection, please refer to ADALIA X3M EXTENDA™

  • ADALIA X3M™ Arm Shoulder   ADALIA X3M™ Arm Shoulder

    Innovatively designed, the ADALIA X3M™ arm shoulder consists of three components made of high-strength extruded aluminum that work in conjunction with one another to provide lateral and vertical stability, and are virtually unbreakable. It features dual inclination modes: a default setting of 0 to 40 degrees, and an optional 35 to 75 degree setting after a simple modification.

  • ADALIA X3M™ Family of Awnings Arm   ADALIA X3M™ Family of Awnings Arm

    ADALIA X3M™ family of awnings arm employs extruded aluminum profiles, strong die-cast and thermally treated aluminum elbows with PVC protected double aircraft cables. The heavy-duty springs inside the arms apply tremendous force to hold the fabric taut when the awning is extended.

  • Fixing Bracket   Fixing Bracket

    Fixing bracket is attaching lateral arm to the front bar. It uses shock-absorbing components to significantly extend its functional lifespan.

  • Front Bar   Front Bar

    Front lead bar has a modern slim look with specially engineered internal reinforcement, and gives continuity to the fabric top while still adding strength to the overall system. The profile on the right is used for smaller awnings versus the profile on the left which is used for awnings wider than 16' and/or that project 11'8".

  • Square Bar   Square Bar

    A strong, galvanized and powder coated 40mm square bar with 2mm walls (on the right) is automatically upgraded to an extruded aluminum 5mm wall, reinforced with architectural ribs square bar (on the left) that prevent it from twisting in large awnings with a projection greater than 10'.

  • Roller Tube   Roller Tube

    Rolltec® uses a structural galvanized steel roller tube with spring memory to re-bound to its original shape.

  • Bevel Gear   Bevel Gear

    A speedy bevel gear with a 5:1 ratio for quick and easy use. A special feature of this gear is the stopper that prevents the awning from rolling up in the wrong direction.

  • Frame colours AD X3M 2017   Frame colours AD X3M 2017

    Frames for ADALIA X3M™  and ADALIA X3M EXTENDA™ awnings are available in four different colours of powder coating: White, Ivory, Spinnaker Beige and Black. Other custom colours are available upon request.

Brackets & Detailed Sideviews

  • Standard Wall Bracket Standard Wall Bracket
  • 3-hole Wall Bracket 3-hole Wall Bracket
  • Ceiling Bracket Ceiling Bracket
  • Modified Ceiling Bracket Modified Ceiling Bracket

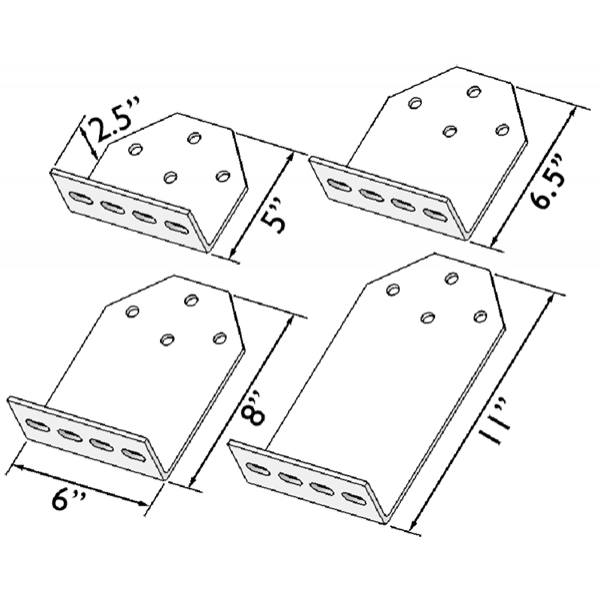

  • Rafter Bracket Rafter Bracket
  • Roof Bracket Roof Bracket
  • ADALIA X3M™ installation on wall ADALIA X3M™ installation on wall
  • ADALIA X3M™ installation on wall with protective hood ADALIA X3M™ installation on wall with protective hood

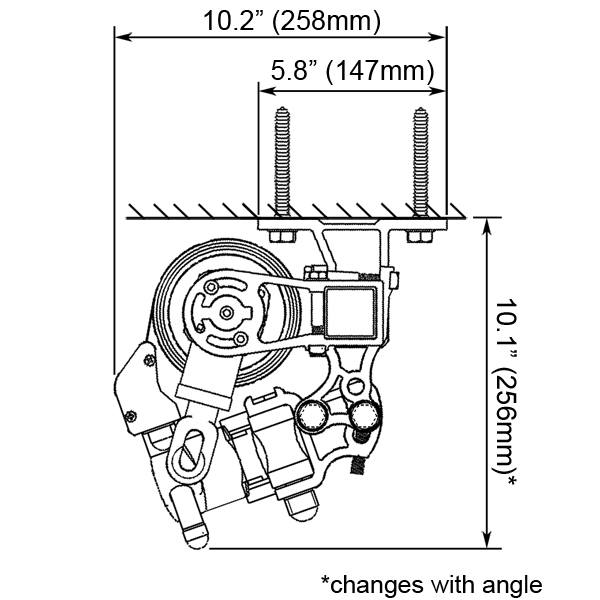

  • ADALIA X3M™ installation under overhang ADALIA X3M™ installation under overhang
  • ADALIA X3M™ installation under overhang with rafter brackets ADALIA X3M™ installation under overhang with rafter brackets
  • ADALIA X3M™ installation on roof ADALIA X3M™ installation on roof
