Overview

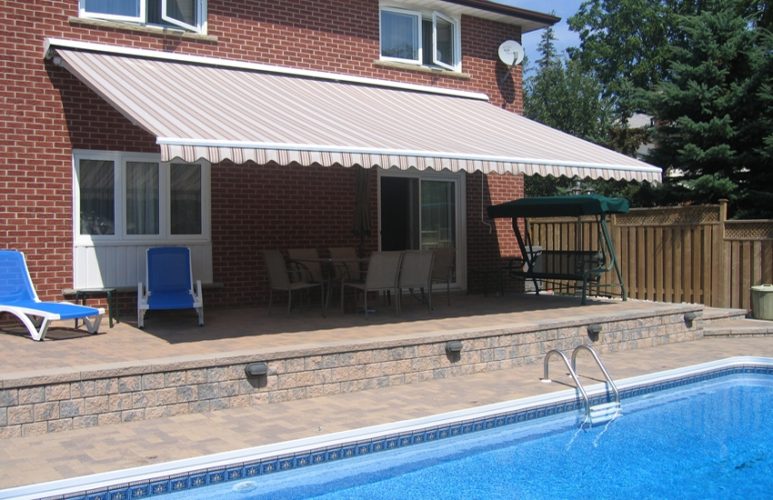

PHYSIQUE XL™ is a heavy duty awning system exclusively designed for 13'0" (4m) projection, and has chain driven arms. Every retractable awning model, while extended, experiences considerable mechanical loads, especially during windy conditions. These loads become more significant for awnings with larger projections, and in particular a 13'0" projection. The PHYSIQUE XL™ features exceptionally robust arm shoulders designed to handle the torque where the arm is connected to the square bar. The model also features powerful lateral arms with rigid stainless steel chain links.

WIth its massive size, the PHYSIQUE XL™ awning is constructed using heavy duty reinforced profiles (square bar, front bar, arm profiles) and forged arm casts, adding strength and stability to the overall system.

All parts are made from corrosion resistant materials and finished with a white powder coating. Each awning is manufactured to the client's specification with custom widths starting from 15' wide, and increases by as little as 1" increments.

The PHYSIQUE XL™ frame is backed by a 5 year warranty.

Frame Components

  • PHYSIQUE XL™ Arm Shoulder   PHYSIQUE XL™ Arm Shoulder

    Extremely strong arm shoulders made of high strength extruded and die cast aluminum sustain the weight and tremendous torques associated with a 13' projection. The PHYSIQUE XL™inclination can be easily adjusted using a hex key.

  • PHYSIQUE XL™ Arm   PHYSIQUE XL™ Arm

    The PHYSIQUE XL™ arms are made from extruded aluminum profiles and forged elbow joints with stainless steel chains. Powerful springs keep the fabric taut when the awning is extended. Self-lubricating bronze bushings reduce frictional wear and tear.

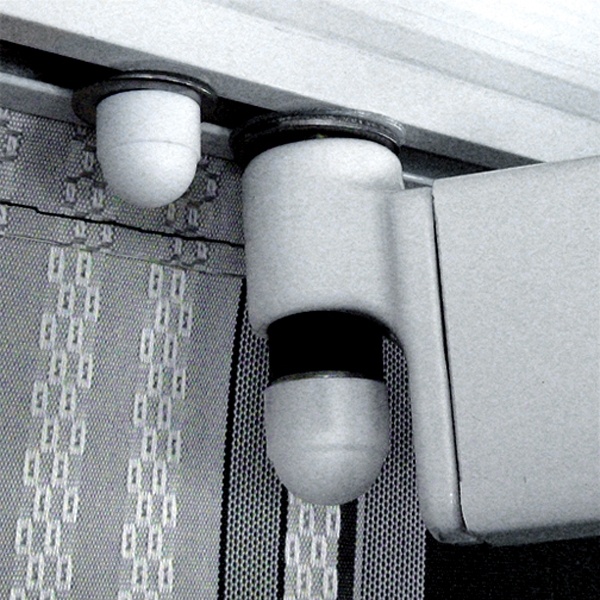

  • PHYSIQUE XL™ Fixing Bracket   PHYSIQUE XL™ Fixing Bracket

    The fixing bracket is designed to maximize the range of motion of the arms where they meet the front bar. Rolltec®'s signature shock-absorbing parts help extend the life of the awning.

  • Larger Front Bar   Larger Front Bar

    Larger style front bar has a modern slim look with specially engineered internal reinforcement, and gives continuity to the fabric top while still adding strength to the overall system

  • Reinforced Extruded Aluminum Square Bar   Reinforced Extruded Aluminum Square Bar

    To alleviate the torsional loads associated with a 13'0" projection, each PHYSIQUE XL™ awning is built with a reinforced extruded aluminum square bar that is much stronger than commonly used steel bars.

  • Roller Tube   Roller Tube

    Rolltec® uses a structural galvanized steel roller tube with spring memory to re-bound to its original shape.

  • Bevel Gear   Bevel Gear

    A speedy bevel gear with a 5:1 ratio for quick and easy use. A special feature of this gear is the stopper that prevents the awning from rolling up in the wrong direction.

Brackets & Detailed Sideviews

  • 3-hole Wall Bracket 3-hole Wall Bracket
  • 3-hole Universal Bracket 3-hole Universal Bracket
  • Rafter Bracket Rafter Bracket

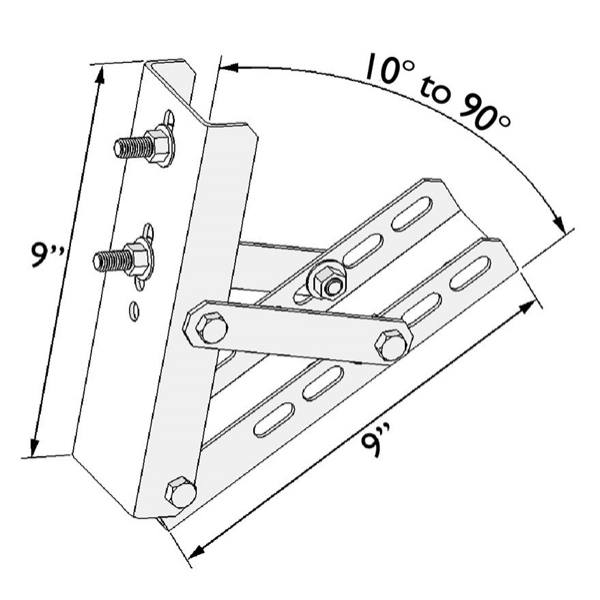

  • Roof Bracket Roof Bracket
  • PHYSIQUE XL™ installation on wall PHYSIQUE XL™ installation on wall
  • PHYSIQUE XL™ installation on wall with protective hood PHYSIQUE XL™ installation on wall with protective hood
  • PHYSIQUE XL™ installation under overhang PHYSIQUE XL™ installation under overhang
  • PHYSIQUE XL™ installation under overhang with rafter brackets PHYSIQUE XL™ installation under overhang with rafter brackets
  • PHYSIQUE XL™ installation on roof PHYSIQUE XL™ installation on roof
